Interactive Online Chart SECSI FRA

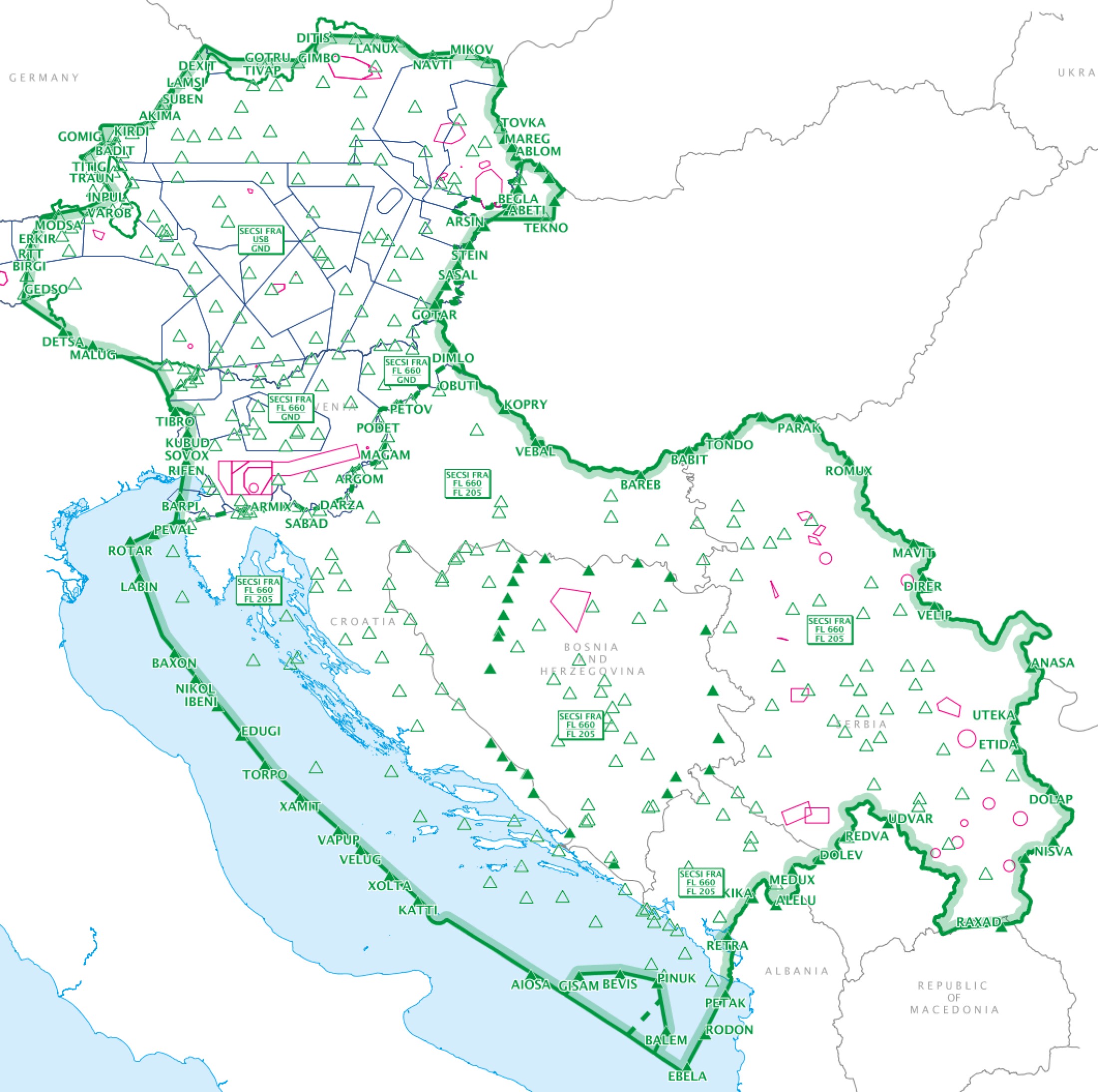

The “Online Chart SECSI FRA” is an electronic visualization of the South East Common Sky Initiative Free Route Airspace (SECSI FRA) and is comprising the Free Route Airspaces of Austria, Bosnia and Herzegovina, Croatia, Montenegro, Serbia and Slovenia.

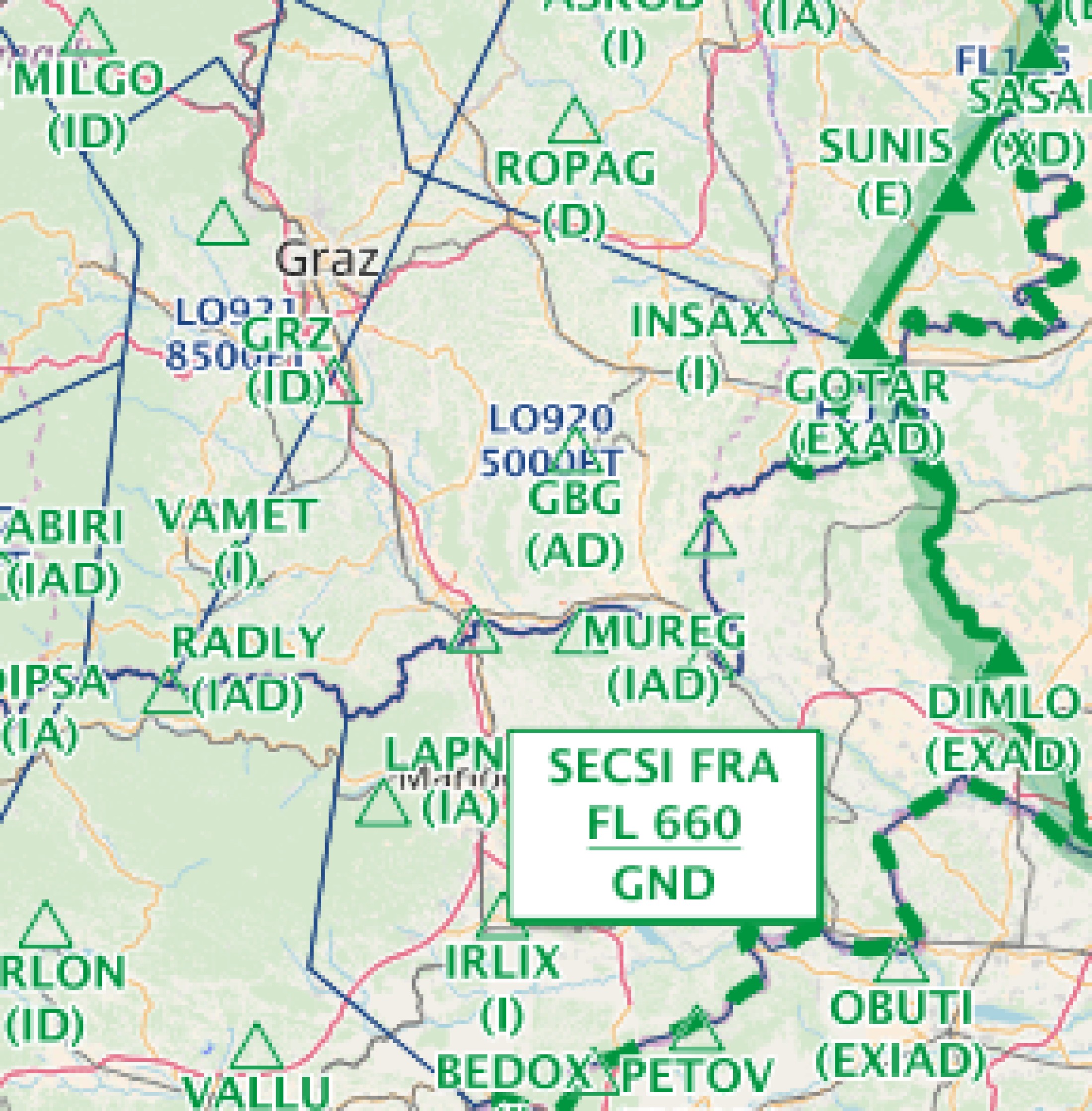

The interactive chart contains essential information for customers related to FRA relevant points (Entry/E, Exit/X, Intermediate/I, Arrival/A and Departure/D), lateral and vertical limits of SECSI FRA, the prohibited, restricted and danger areas within SECSI FRA and the Lowest Available Levels (LAL) where established. The data are extracted from the European AIS Database (EAD) and local AIPs respectively and are compiled for customers to assist in flight planning.


:
The „Online Chart SECSI FRA“ always reflects current aeronautical information and is based on the operational state of the valid amendments and AIRAC amendments of the AIP Austria including selected temporary aeronautical information (e.g. temporary restricted areas).

The weblink maps.austrocontrol.at will take you to the Online Chart SECSI FRA

To start the chart application, first click on „Continue to the Application“ and then select „Online Chart SECSI FRA“. To avoid rendering problems, it is recommended to clear the browser cache from time to time (keyboard shortcut: Ctrl+Shift+Del). Information about technical maintenance, software and data updates and new online charts can be found in the section „History“.
We compiled the most important functions of the chart application in the Quick Guide (PDF, 6.927 KB)
Map projection:
WGS 84 / Pseudo-Mercator (see also: https://epsg.io/3857 and https://en.wikipedia.org/wiki/Web_Mercator_projection)

Recommended web browsers:
Mozilla Firefox, Google Chrome, Microsoft Edge

Disclaimer:
The use of the online chart shown here is an additional service by Austro Control and does not relieve pilots from their obligation of pre-flight planning. In particular, use of the online chart does not relieve the pilot from the responsibility to observe the current edition of the AIP Austria, AIP Supplements, NOTAM and AICs. It shall be used for informational purposes only in addition to the official aeronautical publications.
The online chart shown here was created carefully and to the best of our knowledge. However, Austro Control assumes no liability for the pervious, current or future correctness and completeness for those data depicted this online chart, that are not published in the AIP Austria or in the form of AIP Supplements.
Commercial use of the online chart shown here and/or data contained therein is only allowed with authorization from Austro Control.

Sources:
http://eaip.austrocontrol.at/
https://www.groupead.com/
https://www.austrocontrol.at/en/pilots/pre-flight_preparation/aim_products/aip_sup

Complaints and suggestions please email to:



:
